Fizoptika VG1703 Low Drift Fiber Optic Gyroscope for Stabilization Platform

Brand Name : Firepower

Model Number : MFOG1703

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T,L/C

Supply Ability : 10 pcs/5 months

Delivery Time : 5 months

Packaging Details : wooden box

Bias Stability : ≤1°/h

Measuring Range : ±150°/s

Dimension : φ40 × 20mm

Start Time : 3s

Output Drive Voltage : ≥5+0.25V

Connector : J30J-15TJL/(Customizable)

Contact Now

Main Performance Parameters

Serial

number

Project

Performance

indicators

1

Range (°/s)

±150

2

Scale factor (mV/ o /s)

12±1.2

3

Zero-bias stability (10s, 1σ, °/h)

≤1

4

Zero-bias repeatability (1σ, °/h)

≤1

5

Angular random walk (°/h 1/2 )

≤0.02

6

Zero-bias temperature sensitivity (uV/° C)

≤1

7

Scale Factor Temperature Sensitivity

(ppm/° C)

≤300

8

3dB Bandwidth (Hz)

≥450

Fizoptika VG1703 Low Drift Fiber Optic Gyroscope for Stabilization Platform

9

Impact (g)

1200, 1ms, half

sine

10

Power supply (V)

5+0.25

11

Power Consumption (W)

≤1

12

Dimension (mm)

φ40 × 20

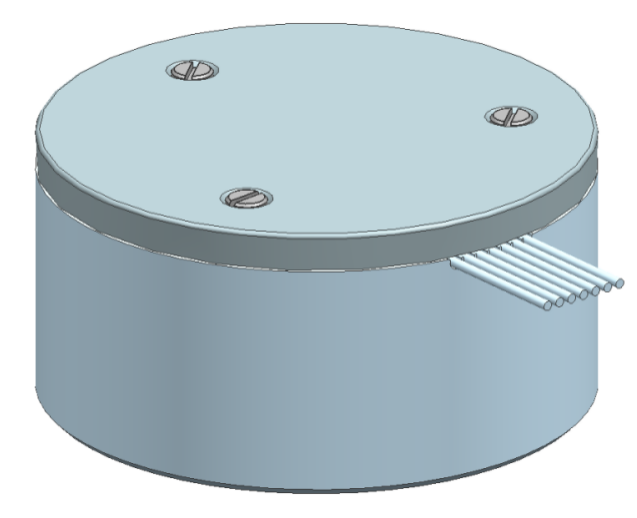

MFOG-1703 is a high-precision micro-nano fiber optic gyroscope based on the Sagnac effect. It integrates optical, mechanical, and electronic systems to provide accurate angular rate measurement.
Featuring a solid-state design with no moving or wearing parts, it ensures high reliability, fast startup, and excellent resistance to vibration and temperature changes.
Compact, lightweight, and low-power, the MFOG-1703 is ideal for UAVs, vehicles, ships, missiles, and aerospace applications requiring precise attitude control and navigation.
It serves as a direct replacement for the Russian Fizoptika VG1703, offering improved stability and system compatibility.


Weight

≤40g

Fizoptika VG1703 Low Drift Fiber Optic Gyroscope for Stabilization Platform

4.5 Operating temperature

-40℃~+70℃.

4.6 Storage temperature

-55℃~+85℃.

4.7 Random vibration

Random vibration level: 20g, frequency range: 20Hz ~ 2000Hz.


Outline drawingFizoptika VG1703 Low Drift Fiber Optic Gyroscope for Stabilization Platform
