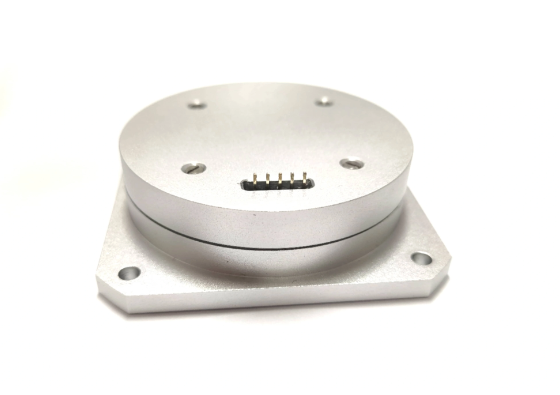

Micro-Nano Integrated Fiber Optic Gyroscope FOG Gyro Sensor for Geographic Exploration

  • 1
  • 2

Brand Name : Firepower

Model Number : MFOG-103PT

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : negotiable

Payment Terms : L/C,T/T

Supply Ability : 500/Month

Delivery Time : 1 week for sample

Packaging Details : Sponge/Box

Measuring range : ±350°/s

Zero-bias stability : ≤1°/h

Angular random walk : ≤0.02°

3dB Bandwidth : ≥1000Hz

Power Consumption : ≤1W

Power Supply : 5±0.25V

Shock : ≥1500g

Weight : ≤70g

Contact Now

Micro-Nano Integrated Fiber Optic Gyroscope FOG Gyro Sensor for Geographic Exploration

Product Description

MFOG103PT FOG is an angular rate sensor that integrates optics, structure, and electricity. Based on the Sagnac effect, it integrates a variety of high-reliability micro-nano fiber optic devices, and feeds back the detection process by detecting the phase difference between two beams of light propagating in opposite directions.
This product is mainly composed of optical path components, circuit components, and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, shock resistance, fast start-up, small size, light weight, and high reliability. It can be used for control and measurement of motion carriers.

Technical parameters

Range
±350°/s
Scale Factor
6±0.6mv/°/s
Zero-bias stability
≤1°/h(10s, 1σ)
Angular random walk
≤0.02°/√h
Zero-bias stability at full temperature(-45 ℃ ~ + 70 ℃)
≤1°/h(10s, 1σ)
3dB Bandwidth
≥1000Hz
Power supply
5±0.25V
Power Consumption
≤1W
Working temperature
-45~+70℃
Shock
≥1500g
Vibration
20 ~ 2000Hz, 0.04g²/Hz
Dimension
60*60*17mm
Weight
≤70g

Detail Photo
Micro-Nano Integrated Fiber Optic Gyroscope FOG Gyro Sensor for Geographic Exploration
Micro-Nano Integrated Fiber Optic Gyroscope FOG Gyro Sensor for Geographic Exploration

Micro-Nano Integrated Fiber Optic Gyroscope FOG Gyro Sensor for Geographic Exploration
